IMPC® (In-Mold Printed Circuit）
technology integrates resin products with electronic circuits to give them electrical functionality
Overview
- Flexible substrate insert molding
- Achieved without the need for special processes or special injection molding machines
- General molding resin materials can be used.
＊PC, PC/ABS, ABS, PMMA etc.

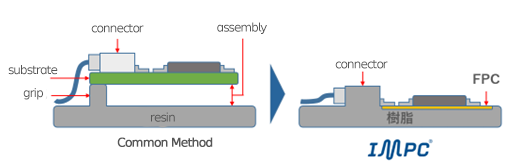

Features
Lighter and thinner :
|
Reduced number of parts reduces weight and space
|
Product precision improvement:
|
Integral molding improves positioning accuracy
|
Reduced installation work :
|
One-piece molding reduces installation work and simplifies the manufacturing line
|
Automated assembly available :
|
High precision in tie positioning allows for automatic assembly
|
Design Improvements :
|
Transparent resin and film are used to make transparent products.
|
Offer Example
Decoration integrated molding
|
Equipped with LED dimming function
|
|
|
- Three-dimensional wiring
- Double insert of decorative film and flexible substrate
- LED indicators
- Heater Circuit
- Resin integrated connector
- Touch Switch
|
- Three-dimensional wiring
- Color LED
- Resin integrated right angle connector
- Touch Switch
- Touch Slider
|
|
|
| Application Examples |
Application Examples |
Indoor light, night light, smart display plate,
Smart Home Appliances |
Indoor light, night light, remote control,
Smart Home Appliances |
| |
|
Overhead console
|
[Under development]
Electronic components embedded in resin for one-piece molding
|
 |
 |
- Three-dimensional wiring
- Light guide in combination with optical design
- Resin integrated right angle connector
- Transparent touch sensor electrodes
|
- Glare-proof and waterproof
- Resin integrated connector
- Double-sided flat
＜ Electronic components used in the sample ＞
LEDs, resistors, capacitors
fuses, transistors, diodes
|
|
|
Application Examples
center console, armrest switch |
Application Examples
lights, road studs, waterproof remote controls |
Please see the technical introduction video for details >
Inquiry
For inquiries regarding technical studies, development, mass production, etc. of this product, please contact us here.
Contact us ＞
Elephantech IMPC®（In-Mold Printed Circuit）Website
IMPC®（In-Mold Printed Circuit）is jointly developed by Takahata Precision Co., Ltd. and Elephantech Co., Ltd. under the name of Elephantech's IME technology.
