(Development example) IMPC® Right Angle Connector Sample

コンテンツ

Right Angle Connector Sample

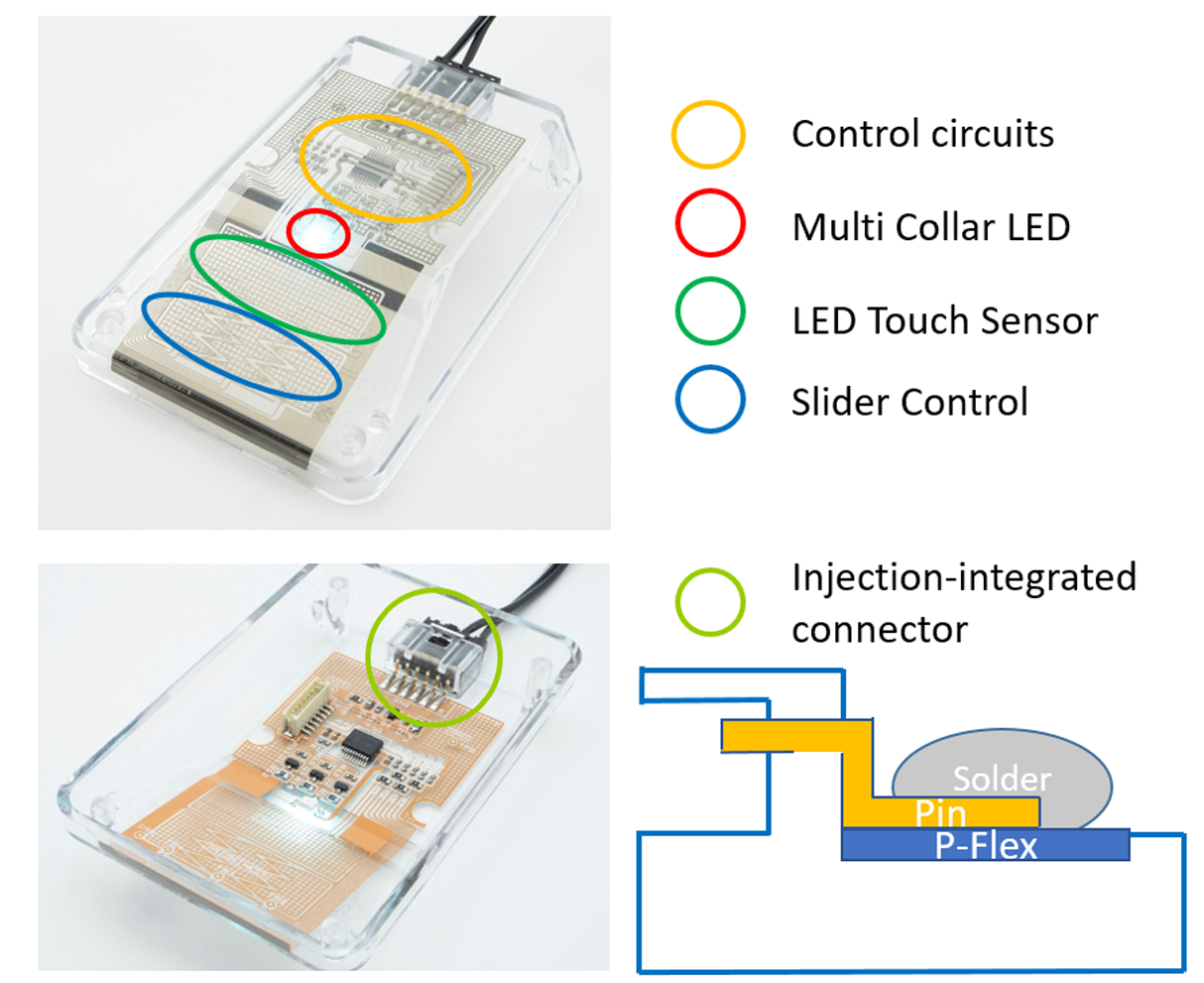

IMPC® Right Angle Connector Sample is a sample of IMPC® with resin integrally molded connectors 90 degrees transverse to the substrate surface(right-angle connectors). The connector is molded together during injection molding.

• A color LED, a touch-button, a touch-slider, and a microcontroller for control are on the circuit
• The touch-button turns The LED on or changes its color
• The touch-slider controls the brightness of the LED




Features

The transparent material makes it easy to check the internal structure.
In addition, its small size, lightweight, and operation via USB power supply allow for quick demonstrations in various locations and scenes.


• Circuit functions: integrally molded right-angle connector, color LED, touch button, touch slider
• Substrate type: P-Flex® PET
• Design and manufacturing: Elephantech Inc. and TAKAHATA PRECISION Co., LTD.


This development sample was produced in collaboration with Elephantech Co., Ltd.
