(Development example) IMPC® multi-function sample

コンテンツ
Multi-Functional IMPC® part, thanks to integrated production process, allows to reduce number of components, as well as your products’ thickness and weight. All that with even easier assembly process.

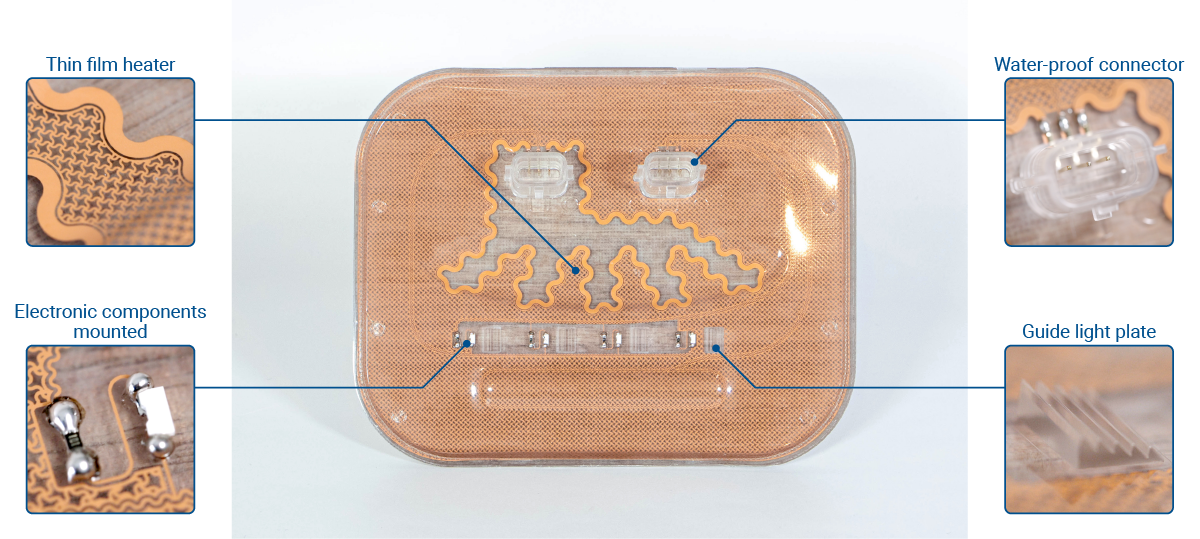

Functions

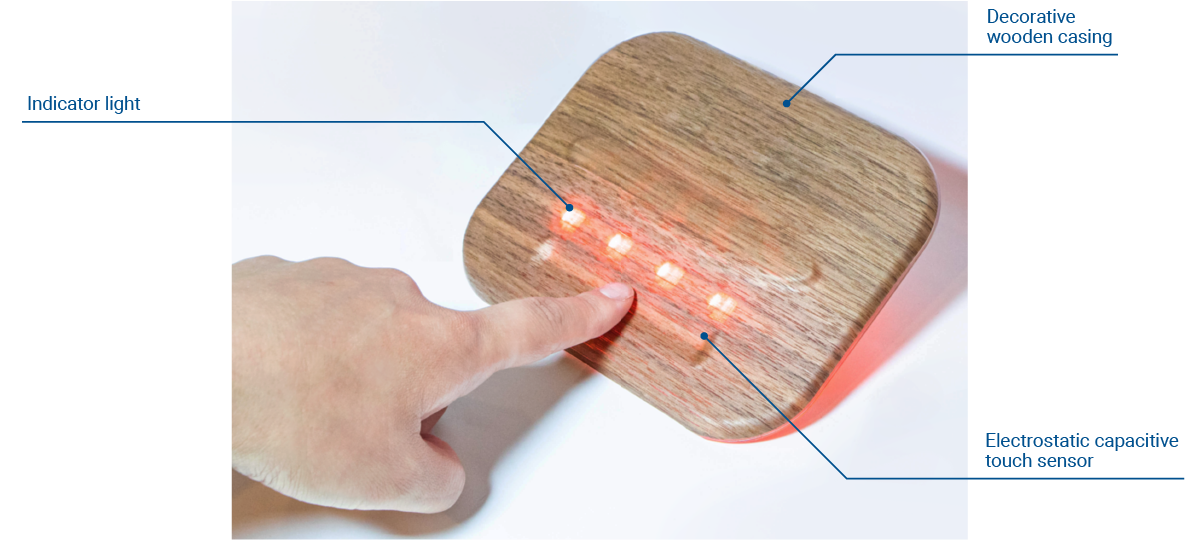

※wooden sheet   ※LED lights

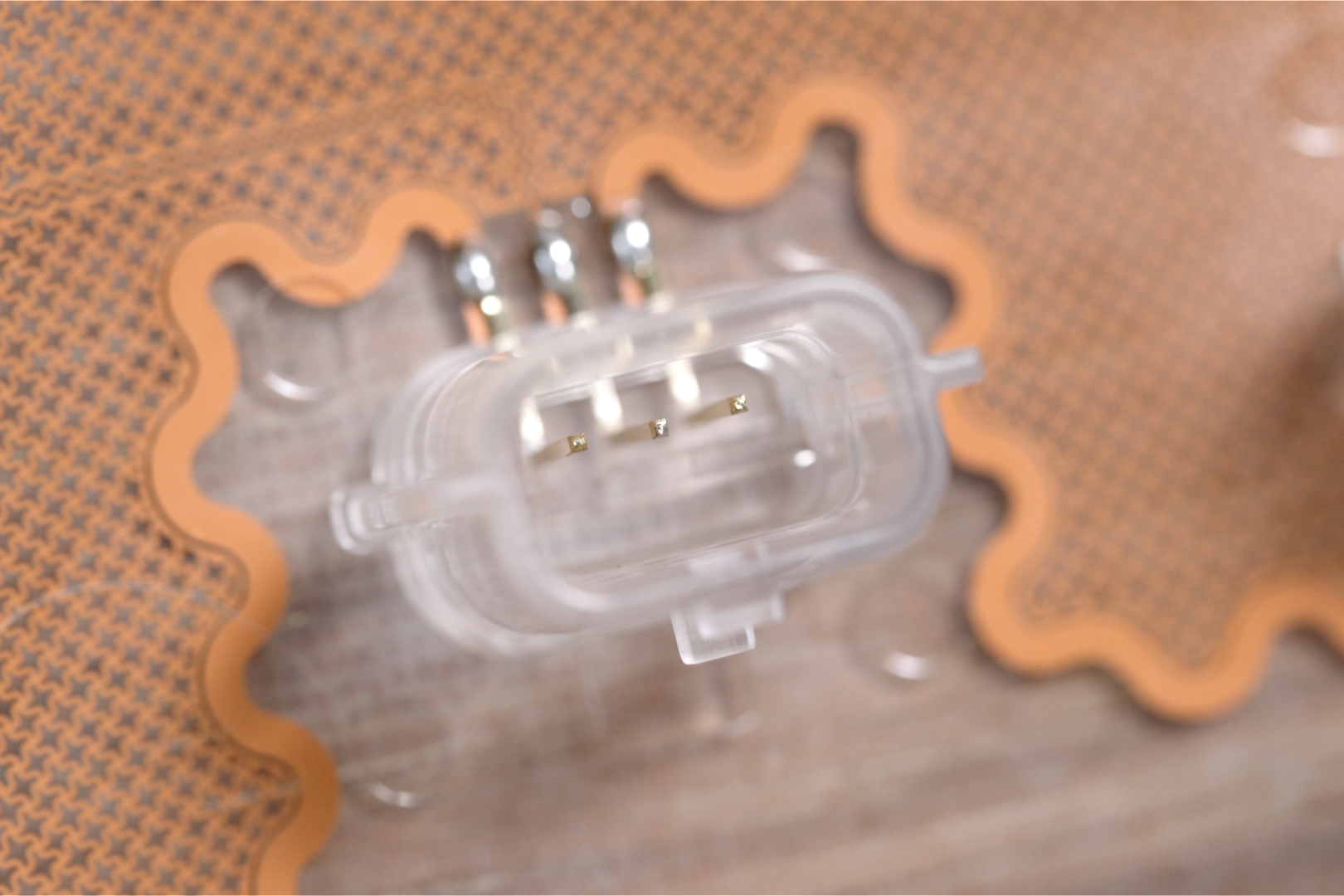

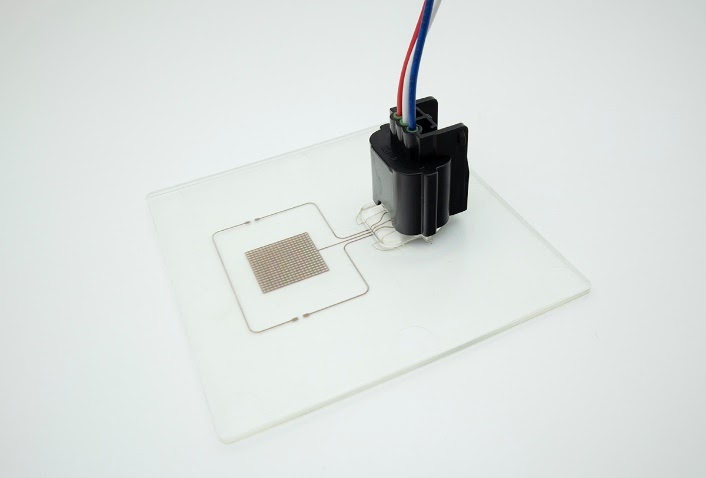

Connectors are integrally molded
Shape and size adjustable

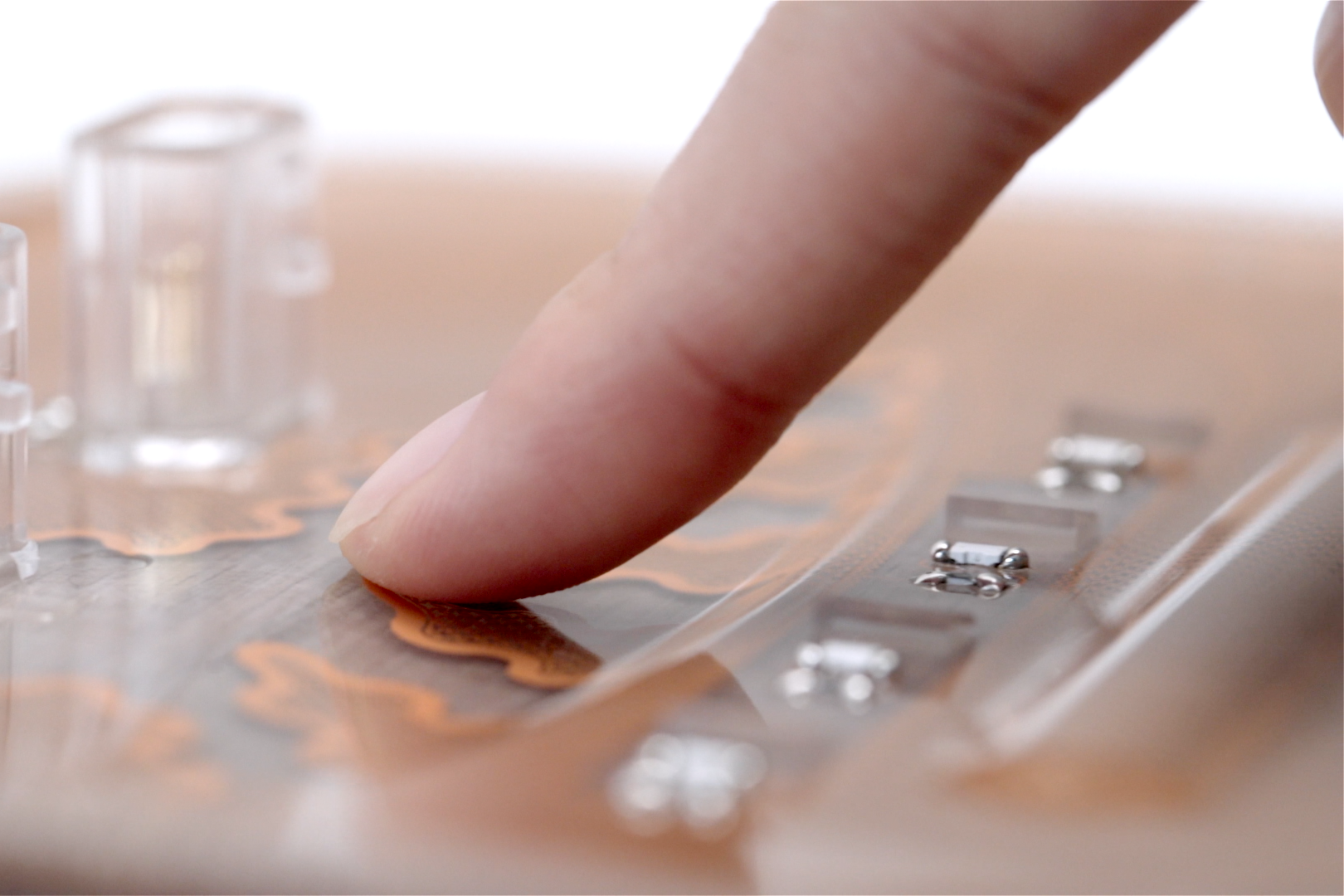

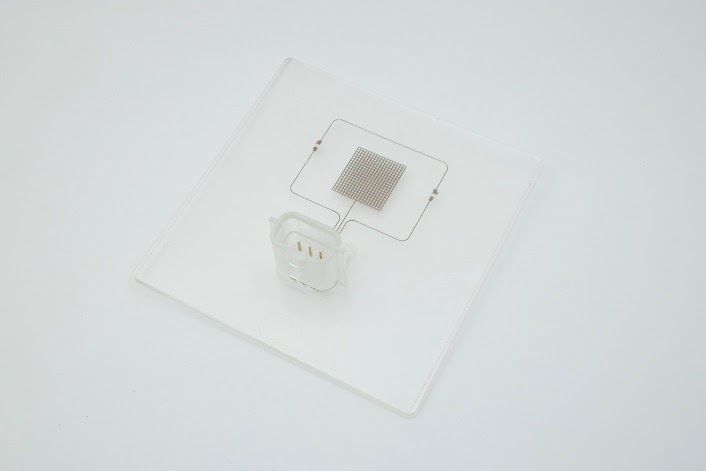

​​​3D formed circuit

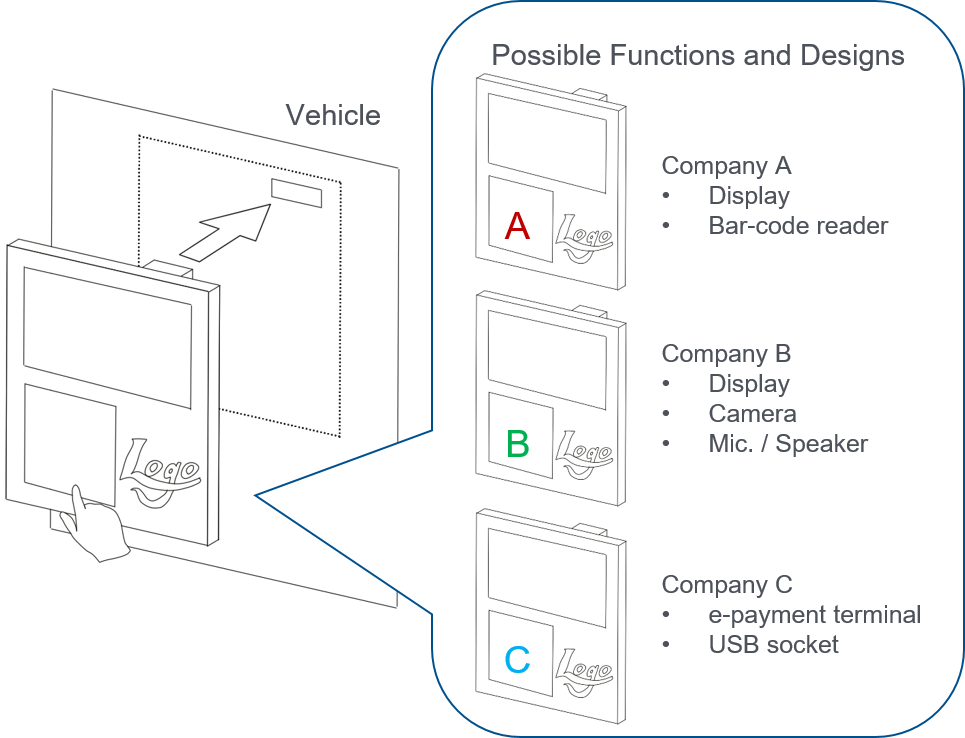

“Detachable Panel Platform“ example ①

Unique design and function adjusted to desired UI and UX.


・Branding elements, such logos and corporate colors can be applied accordingly with provided design manual.

・Integrated design to provide all required functions for each service

・Common connection platform allows flexible and efficient hardware replacement.

・Each module panel is recyclable Sensors can predict life length of the modules

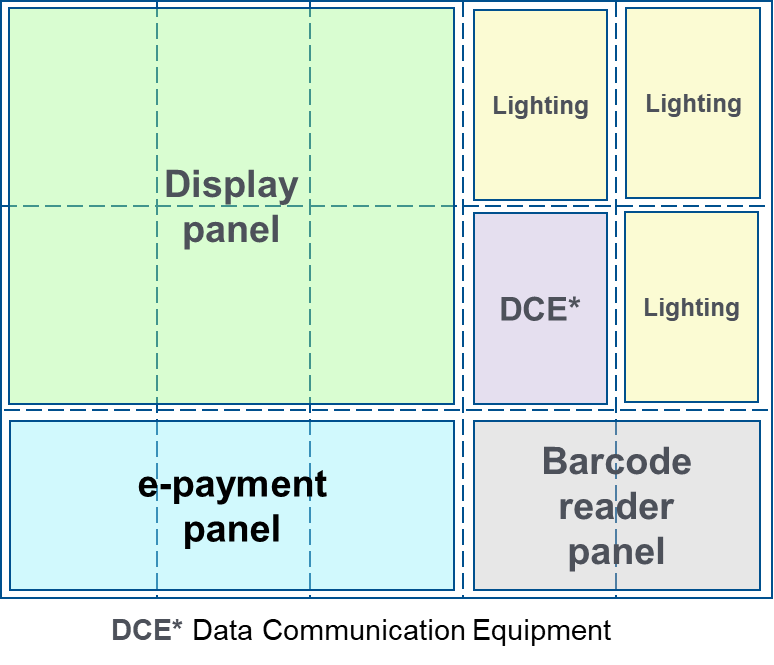

“Detachable Panel Platform“ example ②

Detachable combination of elemental functions integrated with control grid system




Comprehensive operation of functions adjusted to the purpose of use, composed by combining necessary functions like blocks.

・Each panel works by recognizing its own position and the panels around.

・Place two display panels side by side, for bigger display etc.
















This development sample was produced in collaboration with
Elephantech Co., Ltd.

For inquiries regarding technical studies, development, mass production, etc.,
please contact us.
